Get DMX straight out of your laptop

The Vista App software package gives you all the functions of the full-size Vista T4 lighting console on your personal computer. Until now though, if you wanted to connect your PC to your fixtures, you needed two things: an expensive Ethernet-to-DMX adaptor and some networking know-how to set it up.

Now you can generate DMX* straight from your PC’s USB port quickly and simply with the Jands UD512 USB-DMX adaptor. Best of all, you can do it without burning a hole in your pocket.

UD512

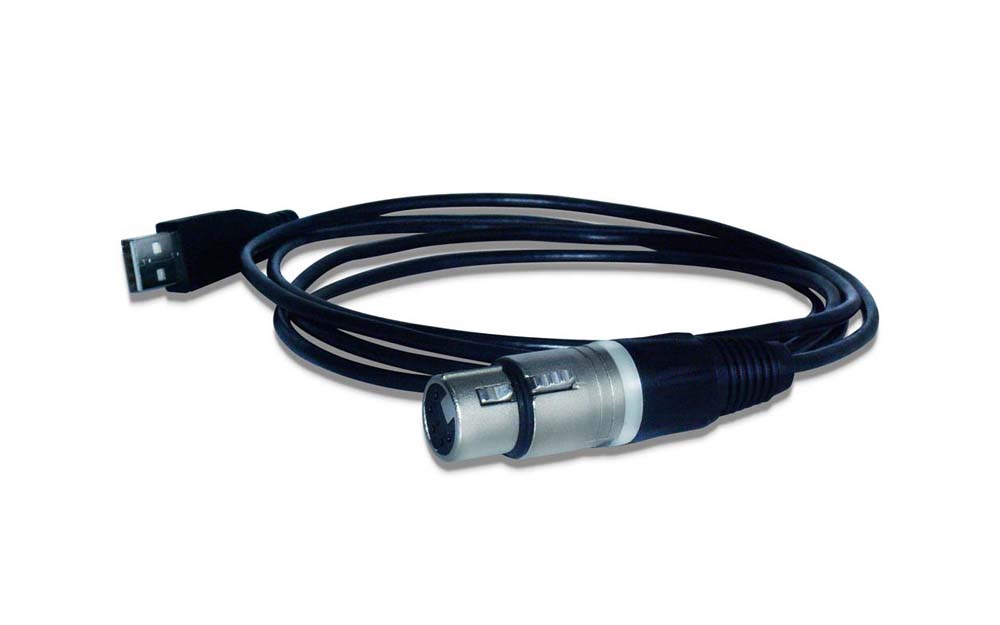

The UD512 is a simple 1.5m cable connector that gives you 512 DMX channels*. The UD512 is powered from the USB port and has two LED indicators showing if the output is selected and DMX activity. Compact and portable, the UD512 is quite simply the most cost-effective and convenient way to get DMX out of your PC.
* Actual DMX output channels determined by dongle. Software pack, including dongle, must be purchased separately.

Technical

• USB powered - requires no external power supply
• One DMX output port - ANSI E1.11
• LEDs to indicate DMX active and Universe selected
• Supplied with a 1.5 metre USB cable
• Net/shipping weight 0.5/1kg

System Requirements

• Windows 7, Vista or XP Professional with Service Pack 3, either 32 or 64bit edition.
• Mac OSX 10.6 Snow Leopard or 10.7 Lion *Hardware must support the 64-bit kernel
• Intel® processor i3 (i5 or better recommended)
• 2GB of RAM (4GB recommended)
• 4GB of available hard disk space

A Vista dongle required to enable output.

Get DMX straight out of your laptop

The Vista App software package gives you all the functions of the full-size Vista T4 lighting console on your personal computer. Until now though, if you wanted to connect your PC to your fixtures, you needed two things: an expensive Ethernet-to-DMX adaptor and some networking know-how to set it up.

Now you can generate DMX* straight from your PC’s USB port quickly and simply with the Jands UD512 USB-DMX adaptor. Best of all, you can do it without burning a hole in your pocket.

UD512

The UD512 is a simple 1.5m cable connector that gives you 512 DMX channels*. The UD512 is powered from the USB port and has two LED indicators showing if the output is selected and DMX activity. Compact and portable, the UD512 is quite simply the most cost-effective and convenient way to get DMX out of your PC.
* Actual DMX output channels determined by dongle. Software pack, including dongle, must be purchased separately.

Technical

• USB powered - requires no external power supply
• One DMX output port - ANSI E1.11
• LEDs to indicate DMX active and Universe selected
• Supplied with a 1.5 metre USB cable
• Net/shipping weight 0.5/1kg

System Requirements for the Vista v2 application:

• Intel i3 or better processor
• Windows 7 Professional 32 or 64 bit
• 2.0GB of RAM (4.0GB recommended)
• 500MB available hard disk space

A Vista dongle required to enable output.
