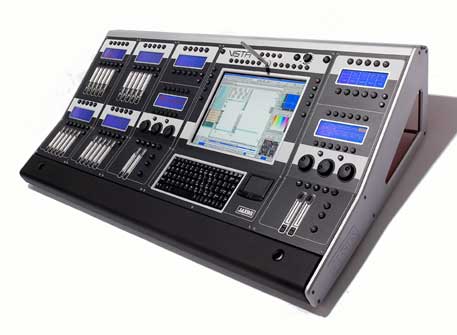

Vista T4 Console
The Jands Vista T4 is our flagship lighting console. A superb example of functional design, the T4 is quite simply the most sophisticated, powerful and easy-to-use lighting console available today.
The T4 is the ultimate, all-in-one lighting package. Using the large 15” pen tablet screen, precision encoders, keyboard, and CD-burner, you can create your shows quickly and easily in the console, save them, then run them using a huge selection of live controls.
The T4 provides a massive array of the features that make the Vista such a great live desk: big LCDs, 30 playbacks (20 with faders), four DMX outputs and timecode input, and six encoder wheels for manipulating intensity, position, colour, gobo and beam.
Control panel (Pen Tablet)
- Wacom 15" Pen-Tablet LCD (1024 x 768)
- 12 user configurable function buttons
- Keyboard and Track pad (extra pointing device)
- 2 sets Blue, Green, Yellow, Red modifier buttons (Left & Right hand)
- 2 Pen modifier buttons (Left & Right hand)
- Power and Help buttons
- 4 Wacom tablet control / configuration buttons
- Grand Master (rotary) fader and DBO button
- CD/RW — in armrest
Playback Controls
- 30 Playbacks, 20 with faders and flash buttons, 10 without
- Playbacks feature; Blue / White LCD, Select and Go buttons
- Split mode allows control of up to 40 Clips
- Playbacks can be configured for control of Groups, Presets and more
- Page Up / Down buttons
Super Playback Controls
- 2 Playbacks with dual faders and buttons
- Go, Pause, Back, Skip Forward, Skip Reverse, Skip to Start, Skip to End buttons
- Utilises LCD and Encoder wheels for display and real time control of playback and other advanced functions.
Programming Controls
- 6 Encoder Wheels with associated Blue / White LCD
- Next / Previous buttons
- 24 context sensitive function buttons
Outputs & Connections
- 4 DMX outputs
- 1 Ethernet output (compatible with ART-NET and Pathport)
- 3 USB2 connectors
- Linear Time code input
- MIDI in/thru/out
- RS232 COM port
- 2 External Monitor Outputs
- 2 Desk lamp outlets
- Audio mic, line in and line out sockets
- Trigger input / output
Technical Specifications
- Processor - Pentium® 4 2.8GHz 533MHZ
- Memory - 512 Mbytes (Expandable to 1.0 Gbyte)
- Hard Drive - 40GB Ultra ATA Hard drive
- Optical Drive - CD-RW Drive (52/24/52X)
- Keyboard - 88 button compact keyboard
- Trackpad - Cirque 2 button GlidePoint® trackpad
- T4 shown with two external 15” displays - not included with console.
