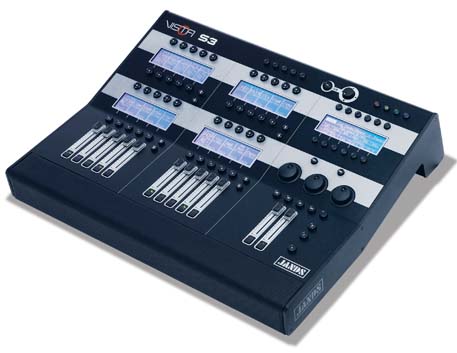

Vista S3 Control Surface
The Jands Vista S3 is a compact version of the Vista that puts all the revolutionary features of the full-scale console into a desk you can fit under your arm.
Designed to be used with your desktop or laptop, the S3 is a Vista without the computer hardware components: we provide the software and the control surface, you provide the computer. Install the software, connect your PC to the S3 with a USB cable, and you've got a fully-operational Vista console.
Playback Controls
- 20 Playbacks, 10 with faders and flash buttons, 10 without
- Playbacks feature; Blue / White LCD, Select and Go buttons
- Split mode allows control of up to 40 Clips
- Playbacks can be configured for control of Groups, Presets and more
- Page Up / Down buttons
Super Playback Controls
- Playback with 2 faders and buttons
- Go, Pause, Back, Skip Forward, Skip Reverse, Skip to Start, Skip to End buttons
- Utilises LCD and Encoder wheels for display and real time control of playback and other advanced functions.
Programming Controls
- 3 Encoder Wheels with associated Blue / White LCD
- Next / Previous buttons
- 12 context sensitive function buttons
DMX Output
- DMX output channels determined by dongle - sold seperately
- 128, 256, 512, 1024, 2048 or unlimited channel versions available
- Specify requirements at time of purchase
- Upgrades available
Input and Output Connections
- 4 DMX outputs (* Actual DMX output channels determined by dongle. Software pack, including dongle, must be purchased separately.)
- 5 USB2 connectors (4 A type, 1 B type)
- Linear Time code input
- MIDI in/thru/out
- Desk lamp outlet
