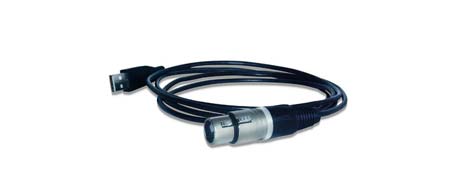

UD512 USB to DMX Interface
Get DMX straight out of your laptop
The Vista App software package gives you all the functions of the full-size Vista T4 lighting console on your personal computer. Until now though, if you wanted to connect your PC to your fixtures, you needed two things: an expensive Ethernet-to-DMX adaptor and some networking know-how to set it up.
Now you can generate DMX straight from your PC’s USB port quickly and simply with the Jands UD512 USB-DMX adaptor. Best of all, you can do it without burning a hole in your pocket.
UD512
The UD512 is a simple 1.5m cable connector that gives you 512 DMX channels. The UD512 is powered from the USB port and has two LED indicators showing if the output is selected and DMX activity. Compact and portable, the UD512 is quite simply the most cost-effective and convenient way to get DMX out of your PC.
Technical
- USB powered - requires no external power supply
- One DMX output port - ANSI E1.11
- LEDs to indicate DMX active and Universe selected
- Supplied with a 1.5 metre USB cable
- Net/shipping weight 0.5/1kg
[ back to top ]
Monitor Arm for T4 / T2
The Vista Monitor Arm allows any VESA MIS-D compliant flat panel display to be attached to the rear extrusion rail of the Vista T4 and T2 consoles. The moveable head allows pan and tilt adjustments of the monitor to suit operator preference.
