UD512 USB to DMX Interface
Get DMX straight out of your laptop

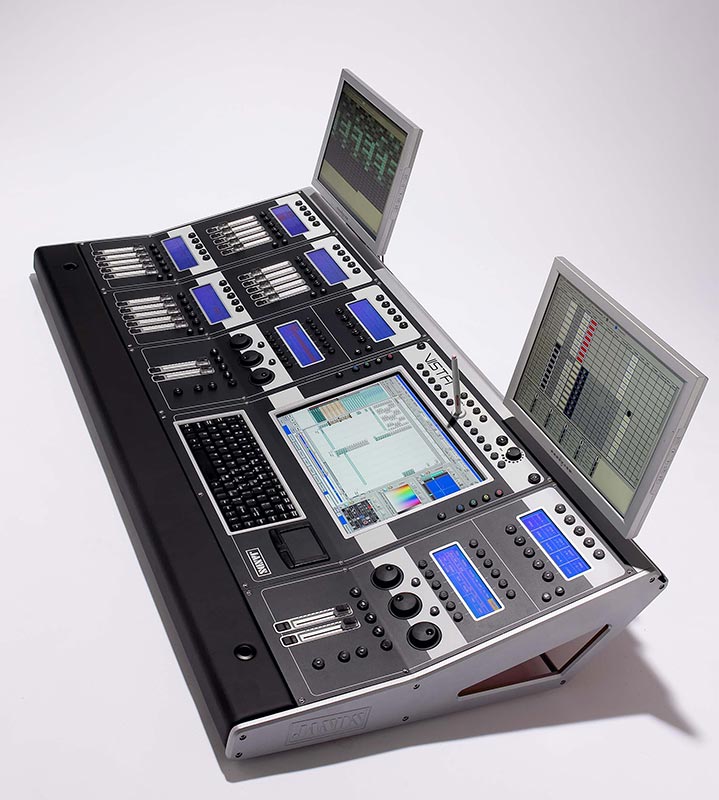

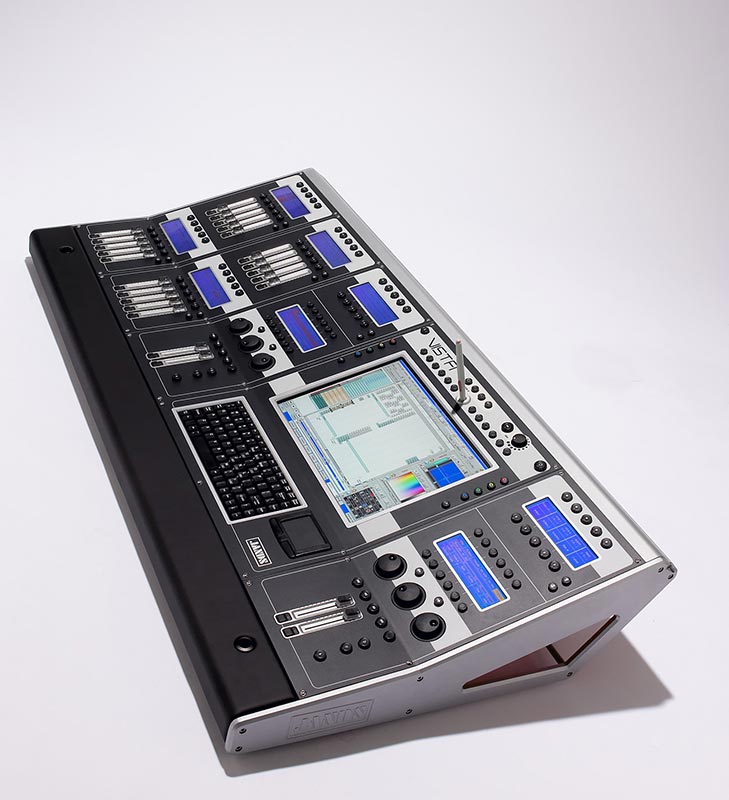

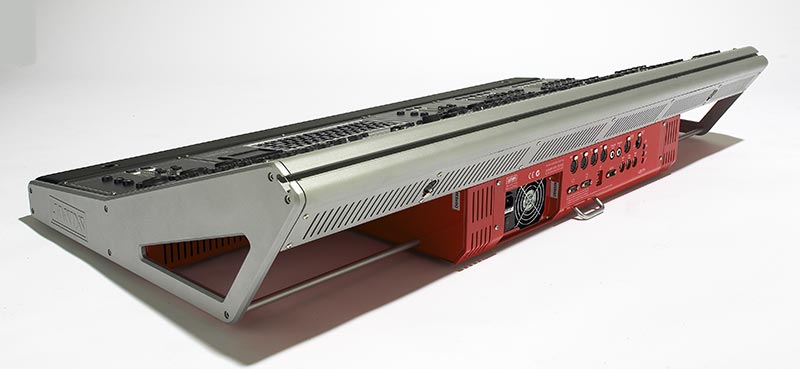

The Vista App software package gives you all the functions of the full-size Vista T4 lighting console on your personal computer. Until now though, if you wanted to connect your PC to your fixtures, you needed two things: an expensive Ethernet-to-DMX adaptor and some networking know-how to set it up.
Now you can generate DMX* straight from your PC’s USB port quickly and simply with the Jands UD512 USB-DMX adaptor. Best of all, you can do it without burning a hole in your pocket.
UD512
The UD512 is a simple 1.5m cable connector that gives you 512 DMX channels*. The UD512 is powered from the USB port and has two LED indicators showing if the output is selected and DMX activity. Compact and portable, the UD512 is quite simply the most cost-effective and convenient way to get DMX out of your PC.
* Actual DMX output channels determined by dongle. Software pack, including dongle, must be purchased separately.
Technical
- USB powered – requires no external power supply
- One DMX output port – ANSI E1.11
- LEDs to indicate DMX active and Universe selected
- Supplied with a 1.5 metre USB cable
- Net/shipping weight 0.5/1kg
System Requirements for the Vista application:
- Intel® Pentium® 4 or equivalent processor
- Windows XP Professional, Home, or Tablet PC edition with Service Pack 2 or 3
Windows Vista Home Premium, Business or Ultimate 32bit edition.
Not suitable for 64bit versions. - 256MB of RAM (512MB recommended)
- 50MB of available hard-disk space
or
- Mac with Intel processor
- OS X 10.5 or later
- 512MB of RAM (1GB recommended)
- 50MB of available hard-disk space
A Vista dongle required to enable output.
